Possio

Possio

Ensuring vehicle safety with GPS tracking solutions

Our client’s request

Scott Adams image
Client's location: Sweden

Our client Scott Adams, Possio CTO, asked us to come up with a solution that would allow real-time vehicle tracking through the installed hardware device. The actual tracking is executed with the help of a hardware Possio Tracker which is purchased in a retail shop and installed in a vehicle. With the help of this tracker, owners would not only know the location of their property, but also track its activities, such as speeding, harsh braking, harsh acceleration, upturns, etc. The solution would also allow to view the history of vehicle manipulation and share the access to tracking with other users.

Android iOS Webapp Tracking Sweden GPS

Relevance

Being widespread and useful these days, GPS tracking solutions address two crucial problems: location monitoring and manipulations while driving. Individuals, as well as fleet operators are willing to protect and safeguard their property. If a GPS tracker is attached to a vehicle, police can easily recover indivіduals’ or commercial vehicles in case of theft. Fleet enterprises in their turn improve vehicle management through GPS tracking solutions. GPS fleet tracking can work towards reducing fuel usage, preventing the deterioration of in-use vehicles, and maintaining proper speeds.

Results

Duration:
January 2016 - June 2017
Team:
Backend - 3 iOS - 2 Android - 2 UI - 1 UX - 1 QA - 3 PM - 1

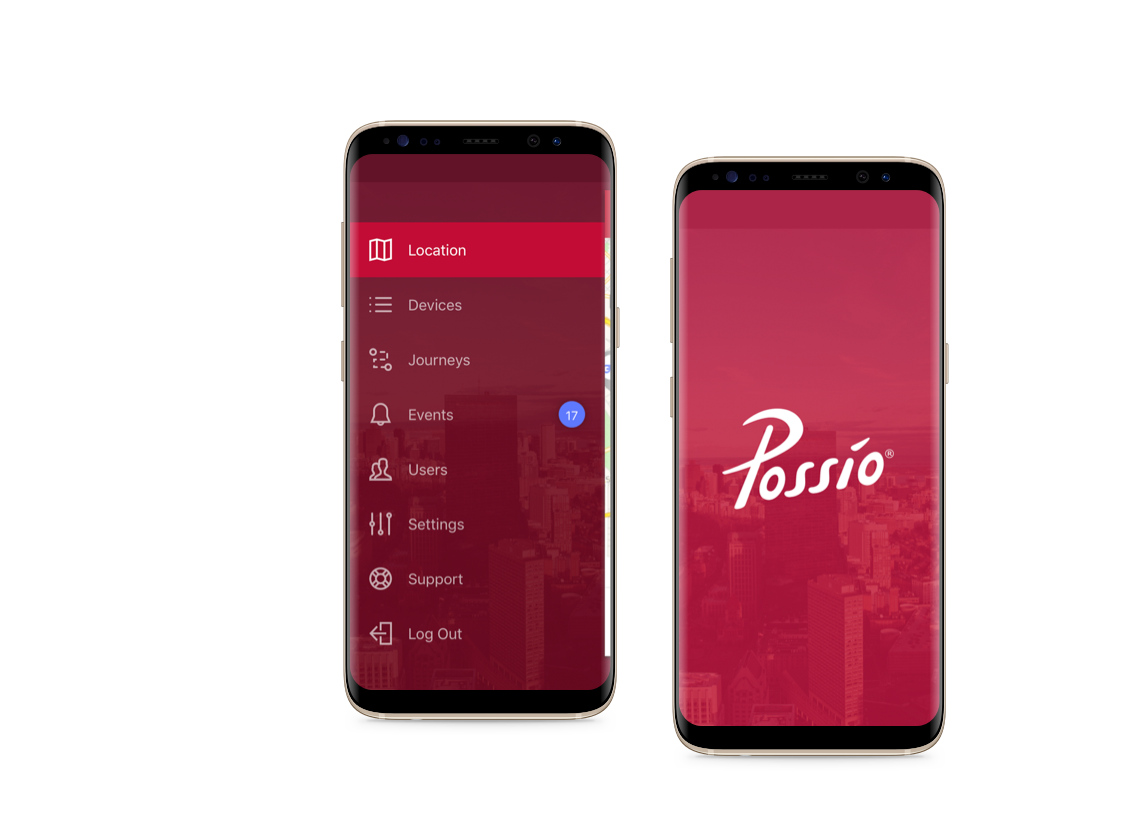

Designed the UX/UI

We gave both the iOS and Android applications a native design.

The first thing we did when working on Possio was define the wireframes. As Possio’s target audience is primarily businessmen, it was necessary to minimize the time it takes to fully understand all features of the app. Therefore, we designed both the UI and UX according to Google’s Material Design guidelines. As per Material Design standards, the app’s design is clean, minimalist, intuitive, and concise. It helps users get the information they’re looking for quickly and easily.

We established the color scheme based on Possio’s corporate style and colors.

Developed the backend

Possio Hardware Device. To use Possio, users must install a Possio tracker directly in each vehicle. These trackers collect various types of data depending on how they’re configured: GPS, GSM, movement, acceleration, and so on. This data is then processed in real time to identify any notable events while the vehicle is moving (e.g. collisions, turnovers, harsh acceleration or braking, entering and leaving set speed ranges or geo-fences, etc.). The collected data is then sent to a single communication server provided by the device manufacturer.

Database. Possio consists of five server instances that run independently from one another. In order to handle these operations, we needed a database that would be accessible from each instance within the product scope. For this reason, we used Amazon Relational Database Service and PostgreSQL for database management.

Server performance and application response latency were our biggest challenges, as devices continuously send large quantities of data (in less than half a year in production, we’ve already collected more than 14 million GPS records). Because of this, we had to denormalize the database structure and add a number of custom indexes and complex SQL queries, which consequently solved our performance and latency issues and made the application run swiftly and smoothly.

Notification Server. We implemented an asynchronous HTTP server to handle message delivery across three different channels: SMS, push notifications, and email.

Once an event has been registered in the database, it’s immediately queued for delivery. The server checks all events individually to determine both the final notification receiver and the channel through which that notification should be sent.

Setting up this process was a bit tricky, since several different users may be tracking the same device though each have different notification preferences. Nonetheless, the server figures all this out, prepares individualized notifications based on templates, and delivers them.

Django Server. The Django server is responsible for several operations: providing a REST API for mobile devices; performing calculations, validations, and aggregations; managing registration, authentication, payments, subscriptions, and the database structure; and a lot more.

The server also manages processes such as device firmware updates, notification configurations, and journey aggregations.

Added integrations

To improve the overall utility of such a complex project, make the service more comfortable for users, and provide administrative features, we integrated a number of third-party services.

System Management. Amazon CloudWatch aggregates logs in one place from all five Possio servers. OkMeter locates and helps fix bugs and unexpected system behaviors. We configured it to track various metrics such as system load, memory usage, system processes, and PostgreSQL stats. This made it possible for us to run custom SQL queries and display them as timeline metrics so that we can check which queries take the most time, which devices are active, which tables are updated more often than others, and know when anything has gone wrong. Sentry is used for error tracking.

Payment Management. Stripe supports all in-app payments. Taxamo does everything tax-related: calculates VAT rates and reports invoices.

Notification Management. The Amazon Simple Email Service sends email notifications to users. We used Firebase for push notifications and Callr to send SMS notifications and perform phone number verification and emergency communication with devices. Tele2 sends SMS messages to trackers. Tele2 is the GSM provider whose sim cards are installed in Possio devices. MailChimp collects emails of registered users so that they can receive newsletters and other important Possio-related information.

Geolocation Management. The Google Maps API gets addresses of points on the map. The Google SnapToRoad API interpolates the list of coordinates received by trackers, which aren’t always defined properly due to some inadequacies in the GPS technology itself, and then snaps them to roads on the map.

Developed a native iOS application

The Possio iOS app is written in Swift. For its architecture, we decided to go with Model–View–ViewModel (MVVM) and a Service-Oriented Architecture (SOA), as these were a perfect fit for our client’s needs.

We implemented Alamofire for all RESTful API interactions and used ObjectMapper to work with the API’s model management. For image caching, we chose SDWebImage. API calls are observed by a network activity indicator, whereas custom extensions and structures are responsible for error management.

With native animations, it was possible to improve the overall user experience. By tuning their tension, damping, and velocity carefully and by making all transitions custom, we succeeded in satisfying all of our design requirements.

To retrieve tracker data in real time, we used WebSockets (the StarScream Framework). For Swedish and Norwegian language support, we used a native localization mechanism. To cache user filters, we decided to implement a default file storage.

Developed a native Android application

The Possio tracker application for Android is written in Java and Kotlin. The main architecture patterns are Model-View-Presenter (MVP) and Model-View-ViewModel (MVVM). By combining both patterns, we were able to use their strongest features to produce highly maintainable code and make development very efficient time-wise.

For the REST API interaction, we used the stable and popular RxJava + Retrofit combination, which allows for easy and simple management of requests. Crashlytics by Fabric IO is used to track crashes, swiftly fix them, and keep a detailed log.

To satisfy the UX requirements, we created a number of custom views tailored in accordance with Material Design guidelines.

The tracker integrates an interactive UI and custom views to control user inputs, manage Google Maps, and visualize data.

Release

We had a very definite release date for Possio, since the app had to be released the same day that Possio hardware went on sale in brick-and-mortar stores.

Implemented features

The Possio tracker tracks devices in real-time. Depending on a user’s monthly plan, updates occur either every hour, every 5 seconds, or at the user’s request.

The history of all vehicle movements is carefully kept within the application. By selecting a specific date and time, users can easily trace their vehicle’s location and movements.

You can have a whole company or family looking after the same Possio tracker from different mobile devices. By registering a tracker through the Possio application, multiple users can be given access to its data and check the location and movements of the same vehicle.

Users can mark areas of any size on the map and get notifications whenever a vehicle enters or leaves them.

Possio trackers track a number of events: driving behaviour (movement, harsh acceleration/braking/cornering), accidents (front and rear collisions and turnovers), crossing of geo-fences, and more. Users are instantly notified via push notification, SMS, or email when anything happens to a vehicle. Moreover, users can configure the particular events they want to keep an eye on.

Technology Stack

Backend

Python
Python
Django
Django
Django REST framework
Django REST framework
Twilio
Twilio
Callr
Callr
Tele2
Tele2
Celery
Celery
Redis
Redis
Push notifications though Firebase
Push notifications though Firebase
Stripe
Stripe
Taxamo
Taxamo
PostgreSQL
PostgreSQL
Sentry
Sentry
Swagger
Swagger
Amazon SES
Amazon SES

Mobile

Swift
Swift
Cocoa
Cocoa
Google Plus
Google Plus
Socket connection
Socket connection
Native push notification
Native push notification
Rxswift
Rxswift
Zendesk SDK
Zendesk SDK
